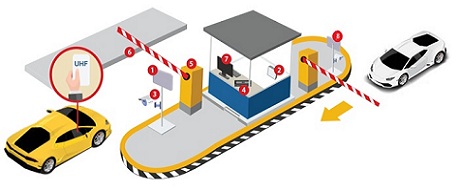

RFID Smart parking management system

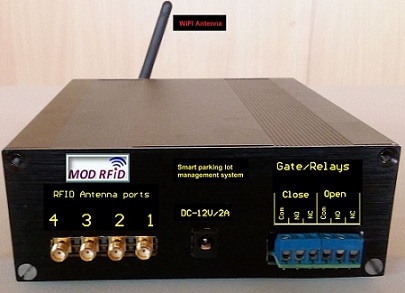

MD714P

Overview:

FEATURES

 Self-intellectual property;
 Designed with IMPINJ E710 and support ISO18000-6C(EPC C1G2) protocol tag;
 865~868MHz/902~928MHz frequency band(frequency customization optional);
 Supporting Iran communication standard;
 FHSS or Fix Frequency transmission with RF output power up to 33dbm(adjustable);
 Effective distance up to 15m (with external 10dbiL antenna and tag E41);
 Support RSSI;
 Maximum inventory speed over 1000pcs/s;
 Tag buffer size up to 1000PCS@96bits EPC;
 4 SMA antenna port with antenna failure detection;
 Low power dissipation;
 Support 4 GPIOs (2 input and 2 outputs);
 Support USB connection.
 High reliability design;
 SD card holder to save large data and saving authorized tags
 Open and close gate with high reliable user-friendly application;
 System clock and date online with self or auto PC correction and battery back-up;
 2.4 GHz standard WIFI connection to be connected to private local internet;
 Compact size to construct with ease;
 Can supports local internet and or USB3 control connection;
 Supports one step SSID ; network password and users user name and password in one page;
 Automatically save all user data after first correct entrance to system.
Download-PDF Parking Management

MD714PT

Overview:

The features of the product model:MD714PT is the same as MD714P RFID reader but has some more options as follows:

More Features:

1- Can be program price/houre true USB connected PC.
2- It is possible to show car capacity in entrance with large LED pannels
3- Can save all data in large SD card for a priode of 6-month
4-payment is possible by mifare RFID cards or pre-payment
5-more options can be order by customer at order time.
6- suports both Djali(Iran) and Universal calender. 7- Suports English or Presian language. and more... Download-PDF Parking Management
